TCP客户端练习示例

mndsoft 2024-6-26 1277

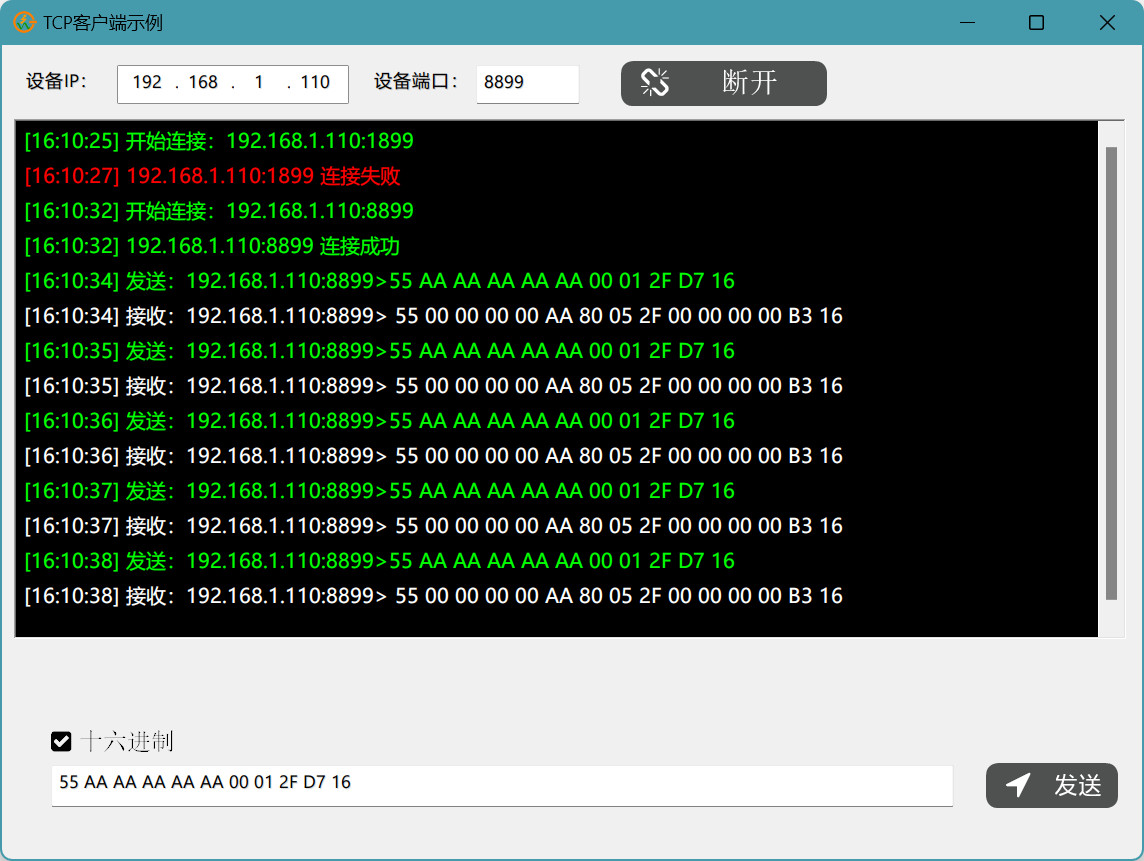

UDP学习完了,学习TCP,使用 wsock.tco异步客户端练习,做了一个简单的测试,可以字符串,十六进制收发数据,发上来供初学者一起学习。

连接按钮事件,同时把  wsock.tcp.asynClient放在一起处理,没有使用 tcpClient.onReceive,不是很熟悉 tcpClient.onReceive 和 tcpClient.onRead有什么区别和优点。

慢慢学,共同进步哈

Code AardioLine:169复制
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
  • 50.
  • 51.
  • 52.
  • 53.
  • 54.
  • 55.
  • 56.
  • 57.
  • 58.
  • 59.
  • 60.
  • 61.
  • 62.
  • 63.
  • 64.
  • 65.
  • 66.
  • 67.
  • 68.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 75.
  • 76.
  • 77.
  • 78.
  • 79.
  • 80.
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.
  • 86.
  • 87.
  • 88.
  • 89.
  • 90.
  • 91.
  • 92.
  • 93.
  • 94.
  • 95.
  • 96.
  • 97.
  • 98.
  • 99.
  • 100.
  • 101.
  • 102.
  • 103.
  • 104.
  • 105.
  • 106.
  • 107.
  • 108.
  • 109.
  • 110.
  • 111.
  • 112.
  • 113.
  • 114.
  • 115.
  • 116.
  • 117.
  • 118.
  • 119.
  • 120.
  • 121.
  • 122.
  • 123.
  • 124.
  • 125.
  • 126.
  • 127.
  • 128.
  • 129.
  • 130.
  • 131.
  • 132.
  • 133.
  • 134.
  • 135.
  • 136.
  • 137.
  • 138.
  • 139.
  • 140.
  • 141.
  • 142.
  • 143.
  • 144.
  • 145.
  • 146.
  • 147.
  • 148.
  • 149.
  • 150.
  • 151.
  • 152.
  • 153.
  • 154.
  • 155.
  • 156.
  • 157.
  • 158.
  • 159.
  • 160.
  • 161.
  • 162.
  • 163.
  • 164.
  • 165.
  • 166.
  • 167.
  • 168.
  • 169.
    • import win.ui;
    • import fonts.fontAwesome;
    • import wsock.tcp.asynClient; //TCP客户端
    • import godking.message //godking信息框
    • /*DSG{{*/
    • var winform = win.form(text="TCP客户端示例";right=759;bottom=542)
    • winform.add(
    • btnConnect={cls="plus";text='\uF0C1 连接';left=413;top=11;right=550;bottom=41;bgcolor=5329231;border={radius=8};color=16777215;dl=1;dt=1;font=LOGFONT(h=-19;name='FontAwesome');iconStyle={align="left";font=LOGFONT(h=-20;name='FontAwesome');padding={left=10;top=2}};notify=1;tabstop=1;textPadding={right=-35};x=8;y=5;z=6};
    • btnSend={cls="plus";text="发送";left=656;top=479;right=744;bottom=509;bgcolor=5329231;border={radius=8};color=16777215;dl=1;dt=1;font=LOGFONT(h=-16;name='微软雅黑');iconStyle={align="left";font=LOGFONT(h=-21;name='FontAwesome');padding={left=10}};iconText='\uF124';notify=1;tabstop=1;textPadding={right=-35};x=8;y=5;z=8};
    • chkHex={cls="plus";text='\uF0C8 十六进制';left=30;top=450;right=197;bottom=481;align="left";dl=1;dt=1;font=LOGFONT(h=-16;name='FontAwesome');notify=1;z=9};
    • ioIP={cls="ipaddress";text="192.168.1.110";left=77;top=13;right=232;bottom=39;bgcolor=16777215;dl=1;dt=1;edge=1;multiline=1;z=3};
    • ioPort={cls="edit";text="8899";left=316;top=13;right=385;bottom=39;dl=1;dt=1;edge=1;multiline=1;z=2};
    • static={cls="static";text="设备IP:";left=16;top=15;right=90;bottom=37;dl=1;dt=1;transparent=1;z=4};
    • static2={cls="static";text="设备端口:";left=248;top=15;right=320;bottom=37;dl=1;dt=1;transparent=1;z=5};
    • txtLog={cls="richedit";left=8;top=50;right=749;bottom=397;bgcolor=1;db=1;dl=1;dr=1;edge=1;font=LOGFONT(h=-13;name='微软雅黑');multiline=1;readonly=1;vscroll=1;wrap=1;z=1};
    • txtSend={cls="edit";text="55 AA AA AA AA AA 00 01 2F D7 16";left=33;top=480;right=635;bottom=508;edge=1;multiline=1;z=7}
    • )
    • /*}}*/
    • var tcpClient = wsock.tcp.asynClient();
    • // godking信息框
    • var msg = godking.message()
    • msg.showOK = false
    • msg.showTitlebar =false;
    • msg.round = 12;
    • msg.borderWidth=2;
    • msg.borderColor = 0xFFFF0000;
    • msg.minWidth =500;
    • msg.btnBgColor =0xFFFF7F00
    • //显示调试信息
    • logview = function(data,color,bkcolor){
    • winform.txtLog.appendText( tostring(time(," [%H:%M:%S] ") ),data,'\r\n');
    • var line = winform.txtLog.lineCount-1;
    • var start = winform.txtLog.lineToChar(line);
    • winform.txtLog.setsel(start,-1);
    • winform.txtLog.setSelCharformat( textColor = color;backColor = bkcolor)
    • winform.txtLog.deselect();
    • winform.txtLog.lineScroll();
    • if (line>100) {
    • winform.txtLog.text="";
    • }
    • }
    • //双击清空调试信息
    • winform.txtLog.wndproc = function(hwnd,message,wParam,lParam){
    • if( message == 0x203/*_WM_LBUTTONDBLCLK*/ ){
    • winform.txtLog.text ="";
    • return true;
    • }
    • }
    • winform.chkHex.checked =true;
    • //连接事件,同时把 wsock.tcp.asynClient放在一起处理
    • winform.btnConnect.oncommand = function(id,event){
    • if winform.btnConnect.text="断开" {
    • logview("断开连接!",0x0000FF);
    • tcpClient.close();
    • return ;
    • }
    • winform.btnConnect.disabledText = {'\uF254';'\uF251';'\uF252';'\uF253';'\uF250';text='请稍候...'}
    • tcpClient = wsock.tcp.asynClient();
    • tcpClient.onClosed = function(err){
    • if(tcpClient == null || tcpClient.isClosed()){
    • //logview("in 断开",0xffffff);
    • winform.btnConnect.iconText = '\uF0C1'
    • winform.btnConnect.text ="连接"
    • return; }
    • }
    • //接收事件
    • tcpClient.onRead = function(err){
    • var remoteIP,remotePort = tcpClient.getRemoteIp();
    • var clientName = remoteIP+":"+remotePort
    • var allData = tcpClient.readAll()
    • if(winform.chkHex.checked){
    • logview("接收:"+clientName+">" + string.hex(allData," "),0xffffff);
    • }else{
    • logview("接收:"+clientName+">" + allData,0xffffff);
    • }
    • }
    • tcpClient.onError = function(err){
    • logview("ERROR:"+err,0x0000FF);
    • }
    • //客户端连接事件
    • tcpClient.onConnect = function(err){
    • if(tcpClient != null && tcpClient.isConnected()){
    • winform.btnConnect.disabledText = null;
    • winform.btnConnect.iconText = '\uF127'
    • winform.btnConnect.text = "断开"
    • logview(winform.ioIP.text+":"+winform.ioPort.text+" 连接成功",0x00FF00);
    • }else{
    • winform.btnConnect.disabledText =null
    • winform.btnConnect.iconText = '\uF0C1'
    • winform.btnConnect.text ="连接"
    • logview(winform.ioIP.text+":"+winform.ioPort.text+" 连接失败",0x0000FF);
    • }
    • }
    • tcpClient.connect(winform.ioIP.text,tonumber(winform.ioPort.text))
    • logview("开始连接:"+winform.ioIP.text+":"+winform.ioPort.text,0x00FF00);
    • }
    • //按钮前景色、背景色可以都改为图像路径
    • var skin = {
    • background={
    • active=0xFF4B739A;
    • default=0xFF4F5151;
    • hover=0xFF4B739A;
    • }
    • foreground = {
    • disabled = 0xFFCCCCCC;
    • };
    • color = {
    • };
    • border = {
    • active = {bottom=3;color=0xFF8FC31F;padding=8;radius=10;}
    • };
    • }
    • //发送
    • winform.btnSend.oncommand = function(id,event){
    • if(tcpClient == null || !tcpClient.isConnected()){
    • msg.err("请连接到服务器!",1000)
    • return;
    • }
    • if(winform.txtSend.text == null || winform.txtSend.text == ""){
    • msg.err("发送内容为空!",1000)
    • return;
    • }
    • //判断发送内容合法性
    • var strd = string.replace(winform.txtSend.text,"\s","");
    • var tt = string.find(strd,"[^0-9a-fA-F]");
    • if(tt != null){
    • msg.err("发送内容不是十六进制字符!",1000)
    • return;
    • }else {
    • if((#strd%2) != 0){ //HEX非偶数,不完整
    • msg.err("十六进制格式出错!",1000)
    • return;
    • }
    • }
    • var client = tcpClient;
    • var remoteIP,remotePort = client.getRemoteIp();
    • var clientname = remoteIP+":"+remotePort;
    • logview("发送:"+clientname+">" + winform.txtSend.text,0x00FF00);
    • if(winform.chkHex.checked){
    • client.send(string.unhex(winform.txtSend.text," ")); //去除\x
    • }else{
    • client.send(winform.txtSend.text)
    • }
    • }
    • import style;
    • winform.chkHex.skin(style.checkBox);
    • winform.btnConnect.skin(skin);
    • winform.show();
    • win.loopMessage();
    最新回复 (2)
    • 光庆 2024-6-26
      0 2

      谢谢楼主的分享,顶

    • nanyi 11月前
      0 3
